ECG Simulator: Cardiosim III
ECG Simulator: Cardiosim III
ECG Simulator: Cardiosim III
ECG Simulator: Cardiosim III

ECG Simulator: Cardiosim III

Part number :INS-001-SM01

Regular price
Sale price
Tax included.
Quantity must be 1 or more
american express diners club discover maestro master paypal visa

Click here to download Simulator Vedio


Product Description:

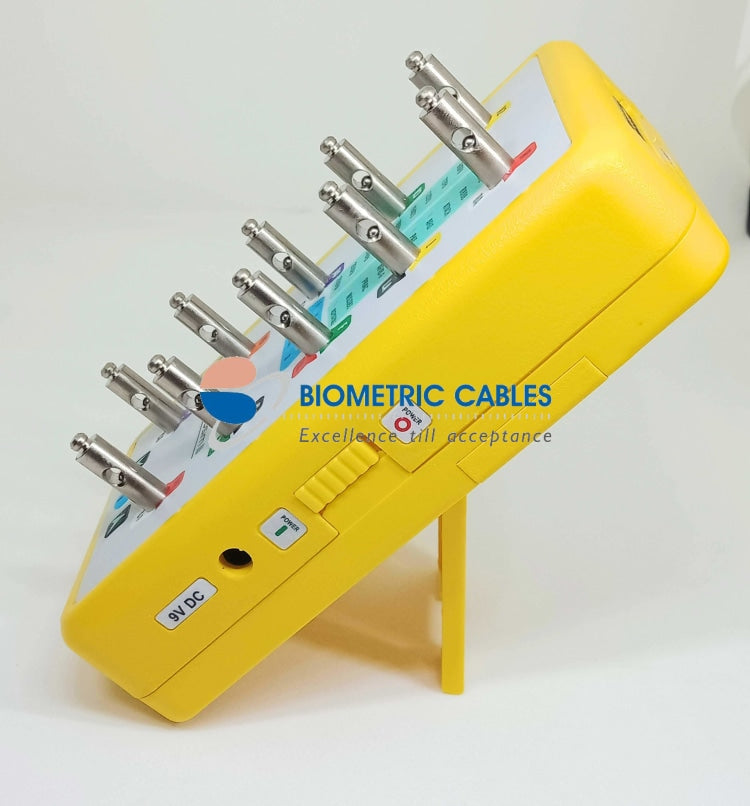

  • The Cardiosim III model is an advanced, compact & portable Simulator.
  • This handheld device simulates a full range of cardiac rhythms and wide variety of ECG Conditions.
  • It includes 10 arrhythmia selections,10 Heart rate selections.
  • It is a unique system for measuring up to 12 leads ECG. It is a unique system for measuring up to 12 leads ECG at easily adjustable Rates of 30,60,72,120,150,180,200,240,260,280 BPM.
  • 4-Amplitude selections, The amplitude is adjustable to 0.5,1.0,1.5,&2.0mV.
  • Universal ECG connection.
  • Easy to connect with different monitors using Extension Cable.
  • Capable of operating in mains & battery.
Technical Specifications:
Category ECG
Certifications ISO 13485:2016,ISO-14971:2012,IEC 60601-1-2005+AMDI 2012,EN ISO-15223-1:2016,EN 1041:2008+A1:2013& RoHS Compliant
Operation Output are easily selected or adjusted using top-controls panel and the two colum of LED's.
Controls display 2-Colum LED's
Control Keys ON/OFF power slide switch
Power 9V Battery /DC Adopter
Housing ABS Plastic
Dimensions 122*87*35 mm
Weight 240gram
Operating Temperature 15℃ to 35 ℃(59℉ to 95℉)
Storage Temperature 0℃ to 50 ℃(32℉ to 122℉)
Packaging Type Corrugated Box
Packaging Unit 1
Warranty 12Months
