Patient Monitor Simulator : AANMA - 400
Part number :INS-001-SM03
- Regular price
- Rs.29,900
- Sale price
- Rs.29,900
Product Description:
-

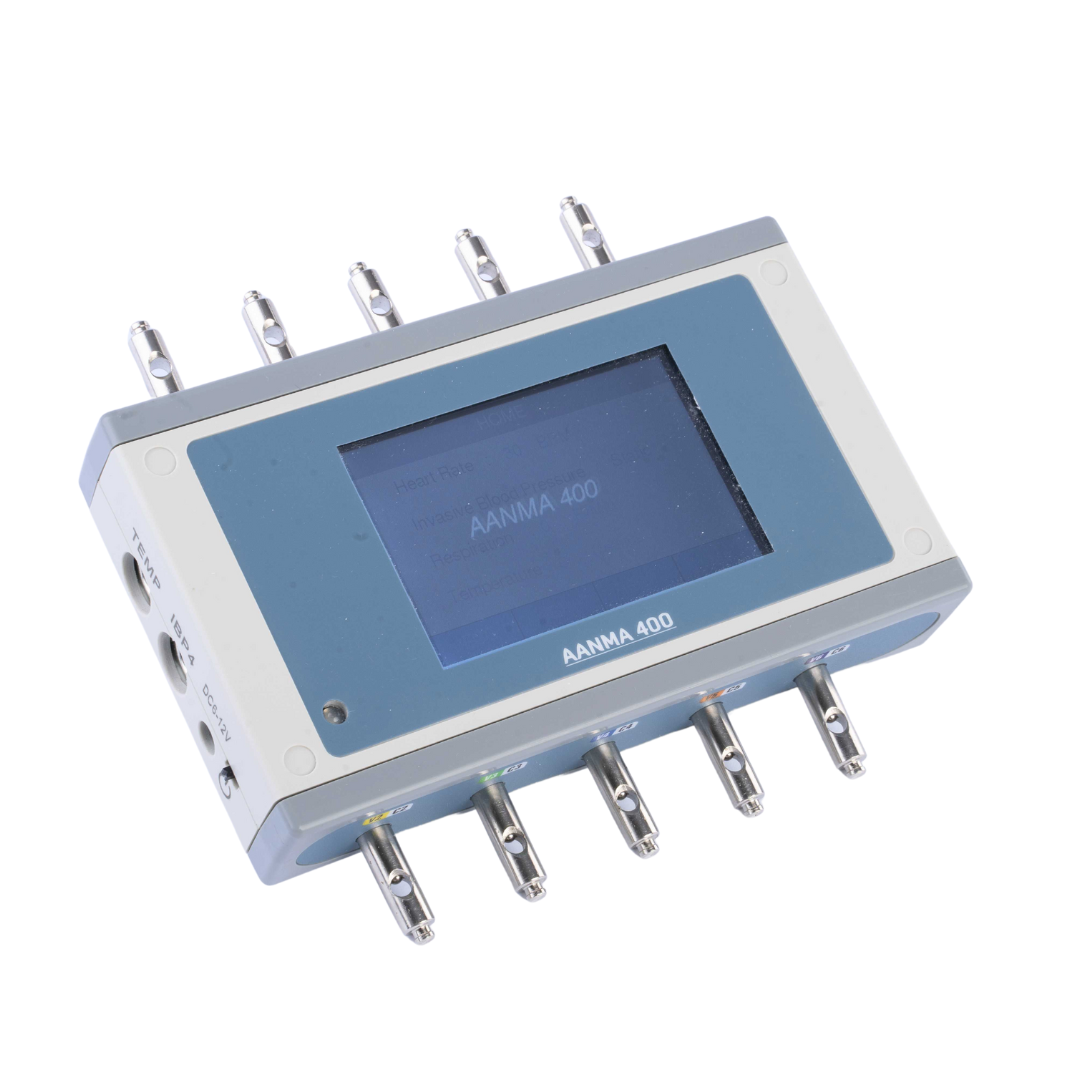

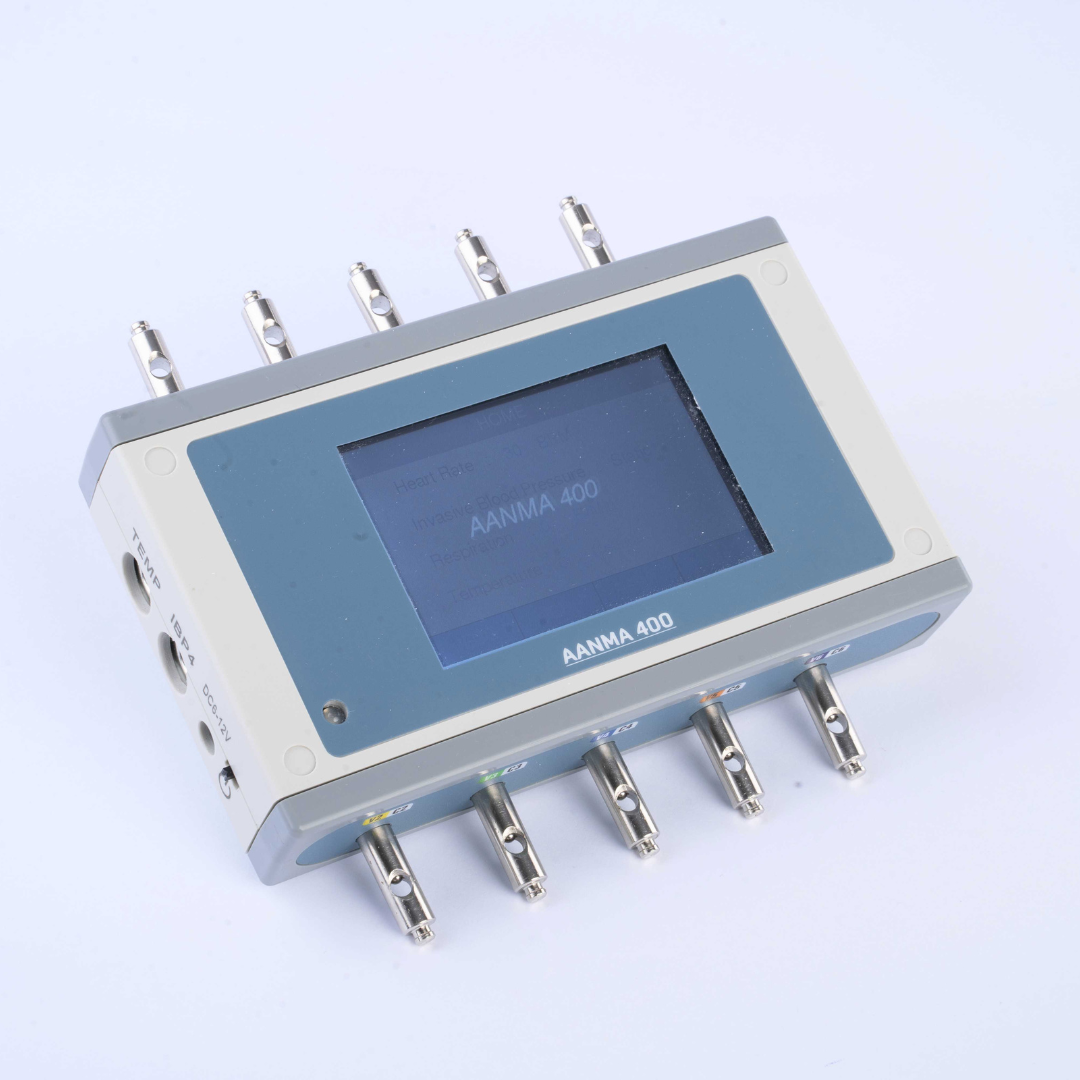

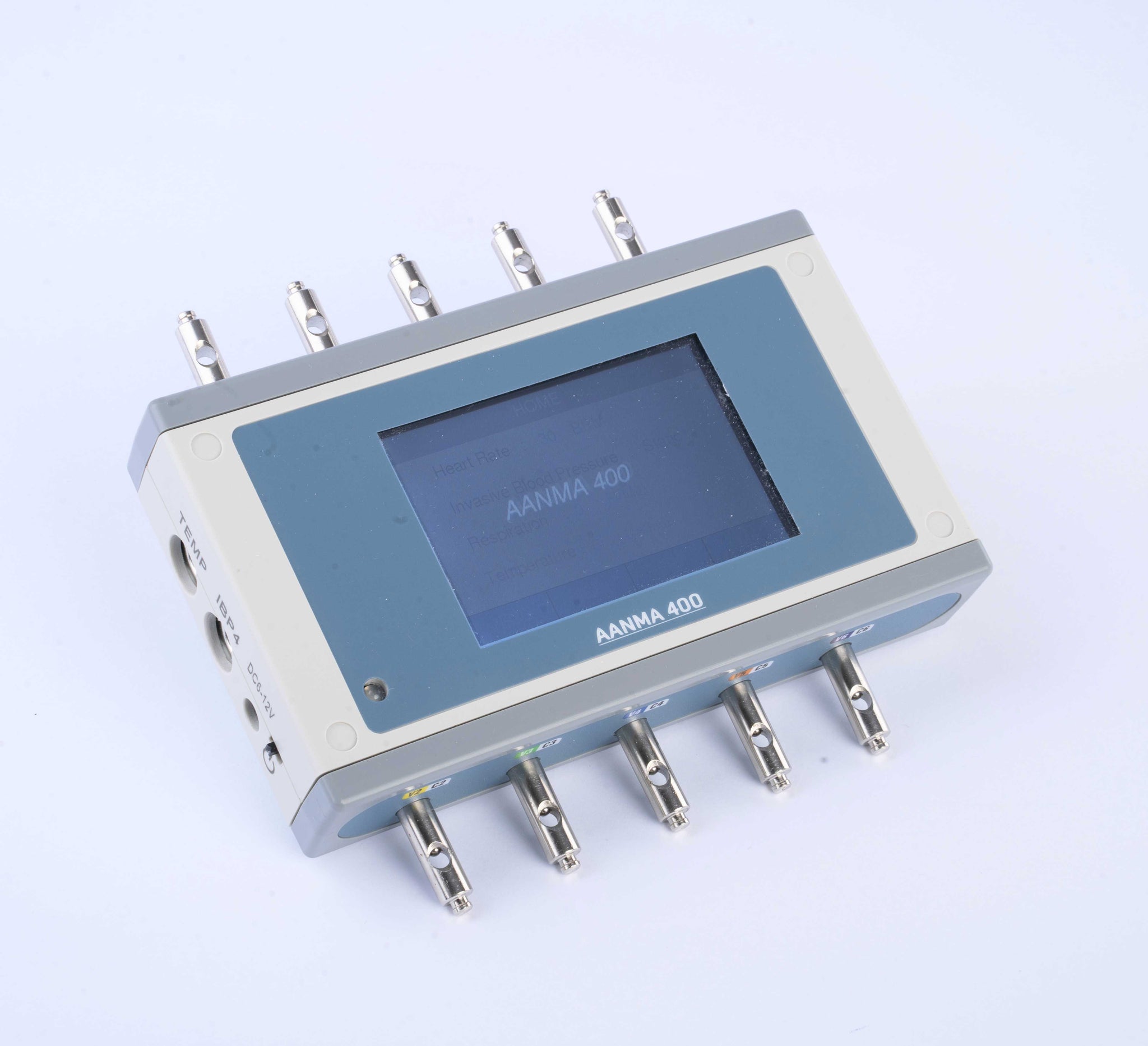

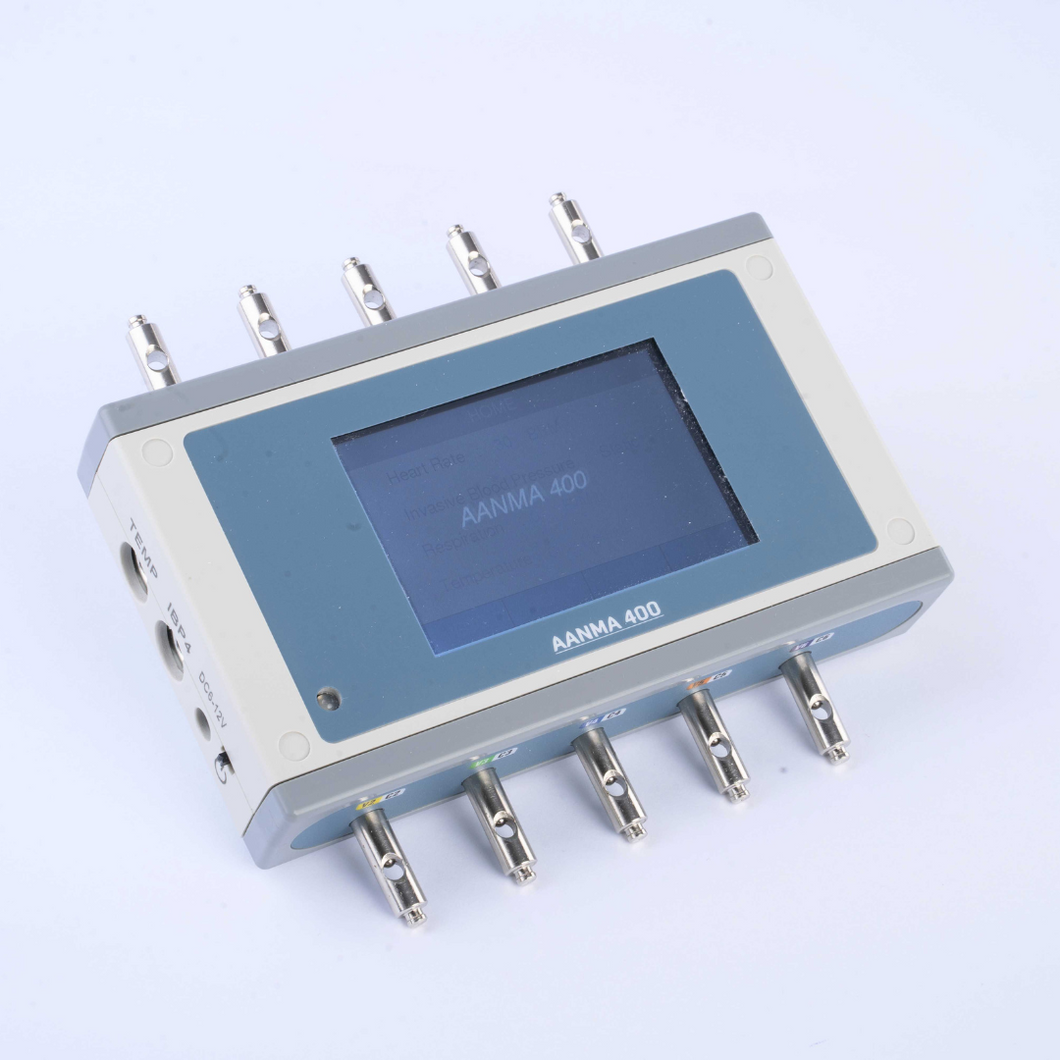

The AANMA-400 is a compact high-performance simulator for patient monitor testing.
-
This handheld device simulates a full range of Human vitals signals.
-
This handheld device simulates a full range of Human vitals signals.
-
Small enough to fit in a pocket, the handy AANMA-400 weighs less than a pound and is easy to operate.
-
Technicians simply connect the simulator to the device under test and use the Resistive touch screen to select the desired wave.
-
The simulator then transmits the selected preset simulations to the device.
- It includes 12 arrhythmia selections,10 Heart rate selections,12-Lead ECG Simulation.
- 4-Amplitude selections, The amplitude is adjustable to 0.5,1.0,1.5,&2.0mV.
- 3/5 Lead universal ECG Port.
- 2-channel IBP.
-
2-Channel Temperature.
- 1-Channel Respiration.
-
Rechargeable Battery Operated/DC Adopter Operated.
- Easy to connect with different monitors using Extension Cable.
- Capable of operating in mains & battery.
| Technical Specifications: | |
| Category | Patient Vital Simulator |
|---|---|
| Certifications | ISO 13485:2016,ISO-14971:2012,IEC 60601-1-2005+AMDI 2012,EN ISO-15223-1:2016,EN 1041:2008+A1:2013& RoHS Compliant |
| Operation | Output are easily selected or adjusted using Touch Screen. |
| Controls display | TFT Resistive Touch Screen. |
| Control Keys | ON/OFF power slide switch |
| Power |
Build-in 4000mAH/3.7v Lipo Rechargeable Battery/6V-12V DC Adopter |
| Housing | ABS Plastic |
| Dimensions |
155x92x29.5 mm |
| Weight | 360gram |
| Operating Temperature | 15℃ to 35 ℃(59℉ to 95℉) |
| Storage Temperature | 0℃ to 50 ℃(32℉ to 122℉) |
| Packaging Type | Bag |
| Packaging Unit | 1 |
| Warranty | 12Months |
